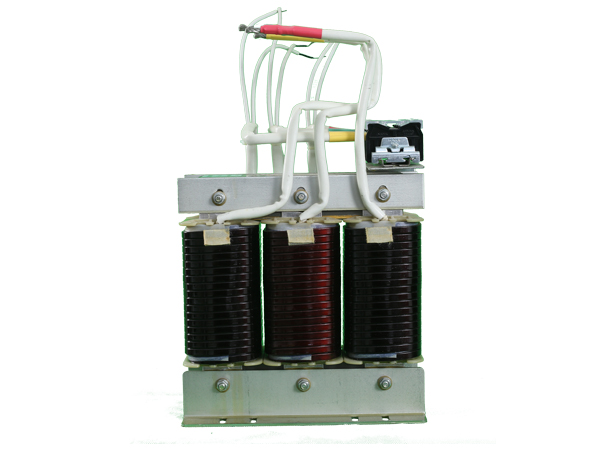

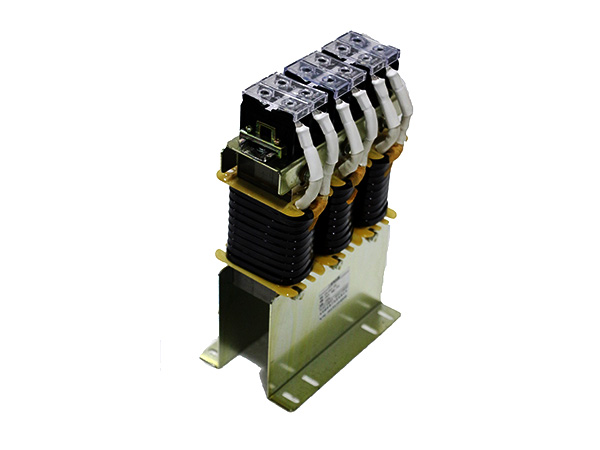

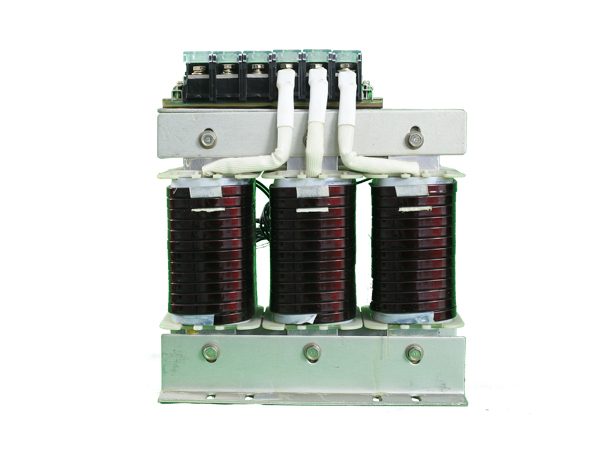

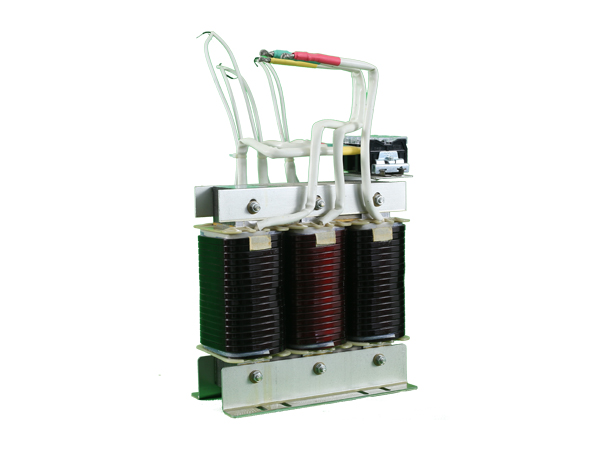

product description:
During reactive power compensation, reactive power compensation capacitors are often affected by harmonic current or harmonic voltage, etc., resulting in damage to the compensation capacitor and reduction of power factor. Therefore, a series reactor must be installed at the front end of the capacitor to suppress and absorbThe corresponding harmonics protect the safe operation of the capacitor, avoid the excitation and amplification of the wave voltage and harmonic current, improve the quality of the power grid, and improve the power factor of the system.
Size parameter table:
technical parameter:
1. System voltage: 3 in 480V/3 in 525V
2. Rated operating frequency: 50/60Hz;
3. Rated capacity: 5KVA--60KVA
4. Reactance rate: 7%-13%
5. Electric strength: core-winding 3000VAC/50HZ/10mA/10S without flying fox attack and wear;
6. Insulation resistance: core-winding 1000VDC, insulation resistance ≥100MQ;
7. Noise: <65 decibels (1 meter away from the transformer);
8. Overload: 1.2 times 1 minute 2 times 10S
9. Saturation characteristics: not less than 1.5 times of 80%
10. Protection class: IP0O- -IP65
11. Storage conditions: temperature - 40°C~70C
12. Operating temperature: -30C~55C, derating above 50°C
13. Altitude application: The rated current is below 1000 meters, and the derating is used by more than 10% for each additional 100 meters per kilometer.
14. Products comply with UL/CSA/CE standards
15. Insulation class: F class H class
16. The American DuPont Nomex paper is used as the insulating material, with high insulation grade and high withstand voltage
17. The iron core is made of high-quality silicon steel sheet, and the reactor has the characteristics of small size, high efficiency and low temperature rise.
18. Can be designed and customized according to customer requirements
