product description:

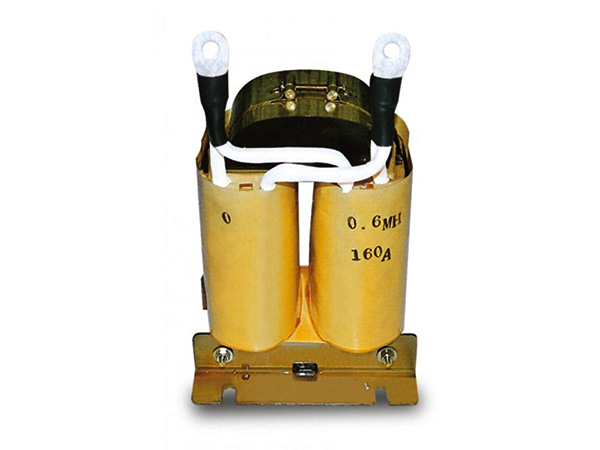

CD-type transformers are used in military power supplies, power supply for various voltage equipment, inverter power supplies and other power products.It can be used for voltage conversion, current conversion, impedance conversion, electrical isolation and other occasions.
technical parameter:
1. System voltage: 0V-1140V
2. Rated operating frequency: 50Hz/60Hz/400Hz;
3. Rated capacity: 18VA- 1600VA
4. Pressure drop: %- 5%
5. Electric strength: core-winding 3000VAC/50HZ/10mA/10S without flying fox attack and wear;
6. Insulation resistance: core-winding 1000VDC, insulation resistance ≥100MQ;
7. Noise: <65 decibels (1 meter away from the transformer);
8. Overload: 1.5 times 1 minute 2 times 10S
9. Saturation characteristics: not less than 1.5 times of 80%
10. Protection class: IP00-IP65
11. Operating temperature: -30°C~55C, derating above 50"C
12. Altitude application: The rated current is below 1000 meters, and the derating is more than 10% for each additional 100 meters per kilometer.
13. Products comply with UL/CSA/CE standards
14. Insulation class: F class H class16. Select American DuPont Nomex paper as insulating material, with high insulation grade and high withstand voltage
15. The iron core is made of high-quality silicon steel sheet, and the transformer has the characteristics of small size, high efficiency and low temperature rise.
16. It can be designed as isolation type and self-coupling type according to customer requirements, isolation type is reliable, safe, and self-coupling type is economical;19. Input and output voltage can be customized according to customer requirements
Size parameter table:
The above dimensions and characteristics are for reference only, we can design them separately according to your requirements.
