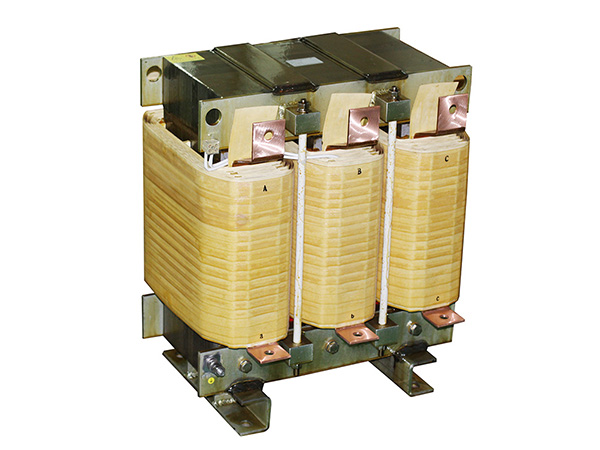

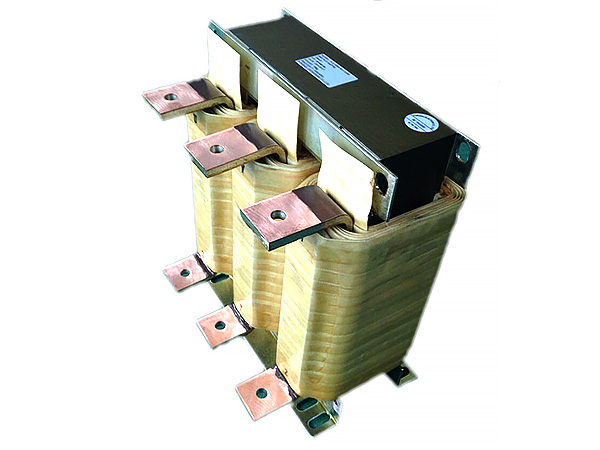

Reactor series

Product parameter

technical parameter:

1. System voltage: 380V in 3/690V in 3

2. Rated operating frequency: 50/60Hz;

3. Rated capacity: 1.5KW- 630KW

4. Pressure drop: 1%- 5%

5. Electric strength: core-winding 3000VAC/50HZ/10mA/10S without flying fox attack and wear;

6.Insulation resistance: core-winding 1000VDC, insulation resistance ≥100MQ;

7.Noise: <65dB (1 meter away from the transformer);

8.Overload: 1.5 times 1 minute 2 times 10S

9.Saturation characteristics: not less than 1.5 times of 80%

10.Protection class: IP0O- IP65

11.Storage conditions: temperature - -40°C~70C

12.Operating temperature: - 30°C~55C, derating above 50°C

13.Altitude application: The rated current is below 1000 meters, and the derating is more than 10% for each additional 100 meters per kilometer.

14.Products comply with UL/CSA/CE standards

15.Insulation class: F class H class

16.The American DuPont Nomex paper is used as the insulating material, with high insulation grade and high withstand voltage

17. The iron core is made of high-quality silicon steel sheet, and the reactor has the characteristics of small size, high efficiency and low temperature rise.

Size parameter table:

                            The above dimensions and characteristics are for reference only, we can set separately according to your requirements.
