Product parameter
Product characteristics:
1. The inner iron core uses high-quality \ high silicon silicon steel sheets, the main material is chosen the most suitable high permeability, low loss material, to meet the customer requirements and use conditions, transformer performance is designed to be optimal.
2. Internal insulation materials use high-quality environmental-friendly composites, which have high-temperature insulation, flame retardant and moisture resistance multiple properties; Insulation of grade B, F, h may also be chosen upon customer request.
3. It is well designed, has low voltage variability, and can be rated for applicability in the long term.
4. Multiple models, specifications, multiple capacities, voltages are available.
Technical parameters:
| Correctness of output voltage | ±1% |
| Output waveform distortion | No distortion (compared with input waveform) |
| Insulation grade | Class h, class F, class B |
| efficiency | More than 98% |
| frequency | 50-60HZ |
| capacity | 1KVA-1000KVA |
| Electrical strength | Iron core winding 2500vac / 50Hz / 5mA / 10s without flashover breakdown |
| insulation resistance | 500VDC insulation resistance ≥ 200m Ω |
| Transformer noise | Less than 65dB (1m test from the horizontal distance point of transformer) |
| Degree of protection | IP00 |
| Insulation grade | Above grade F |
| work environment | 0℃-40℃ |
| temperature | 95% |
| Cooling mode | Dry fan / self cooling |
| | Autotransformer / isolation transformer |
| Special specifications can be customized according to customer requirements |

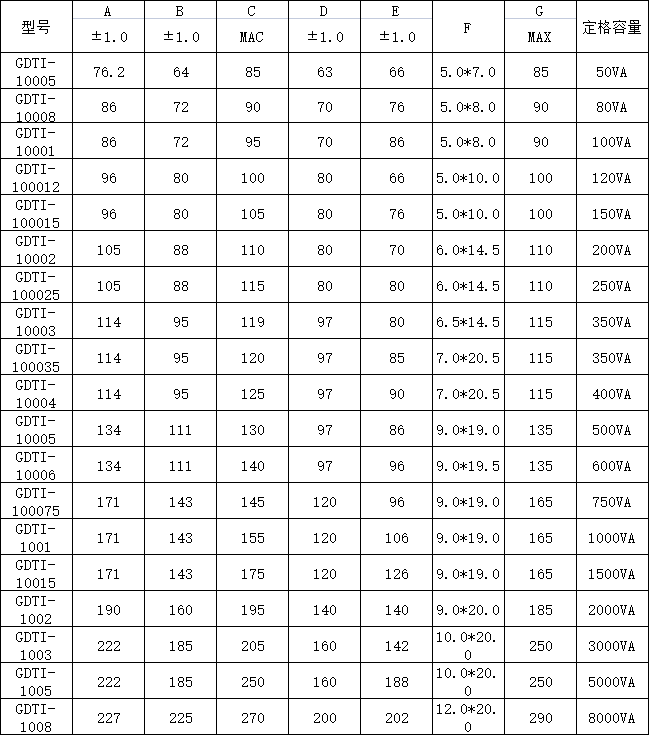

Dimension table：
