product description:

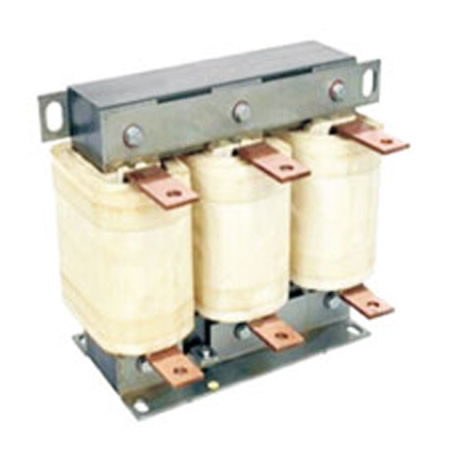

The inverter output reactor is mainly installed at the output end of the inverter to limit the capacitive charging current of the connecting cable between the inverter and the motor, and to passivate the voltage and rate of rise of the PWM wave output by the inverter.
technical parameter:
1. System voltage: 380V in 3/690V in 3
2. Rated operating frequency: 50/60Hz;
3. Fixed capacity: 1.5KW--630KW
4. Pressure drop: 1%-5%
5. Electric strength: core-winding 3000VAC/50HZ/10mA/10S without flying fox attack and wear;
6. Insulation resistance: core-winding 1000VDC, insulation resistance ≥100MQ;
7. Noise: <65 decibels (1 meter away from the transformer);
8. Overload: 1.5 times 1 minute 2 times 10S
9. Saturation characteristics: not less than 1.5 times of 80%
10. Protection class: IP00-IP65
11. Storage conditions: temperature - -40C~70C
12. Working temperature: -30C~55C, derating above 50C
13. Altitude application: The rated current is below 1000 meters, and the derating is used by more than 10% for each additional 100 meters per kilometer.
14. Products comply with UL/CSA/CE standards
15. Insulation class: F class H class
16. The American DuPont Nomex paper is used as the insulating material, with high insulation grade and high withstand voltage
17. The iron core is made of high-quality silicon steel sheet, and the reactor has the characteristics of small size, high efficiency and low temperature rise.
18. Can be designed and customized according to customer requirements
Size parameter table:
The above dimensions and characteristics are for reference only, we can design them separately according to your requirements.
